MM

This extruder is the smallest one in our product range. The winner of the innovation award 2007 is a real allrounder. Materials from PP to PFA are a standard for him

*With only 3.5kg weight and compact design, this machine is an optimum one hand extruder.

*PFA and ECTFE can only be welded with the special version MM-PFA

Advantages:

  • Compact design
  • Brushless blower
  • A lot of special materials weldable (see data sheet)
  • Comfortable menu guide with automatic temperature adjustment
  • Four materials preset, more program spaces free to set your own material
  • Machine stand and transport case included
  • Foldout side handle can be purchased additionally

Technical Data:



Max. welding capacity:

0.6 kg/h, Ø 3mm

Welding material:

PP / PE / PVDF / PVC e.g.

Material type:

Round rod Ø 3 mm

Application range:

Thicknesses up to 10 mm

Weight:

3.5 kg

Length:

450 mm

Electronic Speedcontrol:

Electronically, on controller

Mass heating:

875 W

Drive:

Brushed type

Preheating:

2300 W

This item is available in 110 or 220V.

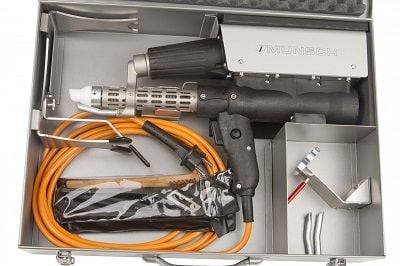

Delivery Content:

  • 1 welding shoe (shaped to customers’ needs)
  • Tool and maintenance kit
  • Transport case
  • Machine stand

RELATED PRODUCTS:   MM-PFA
